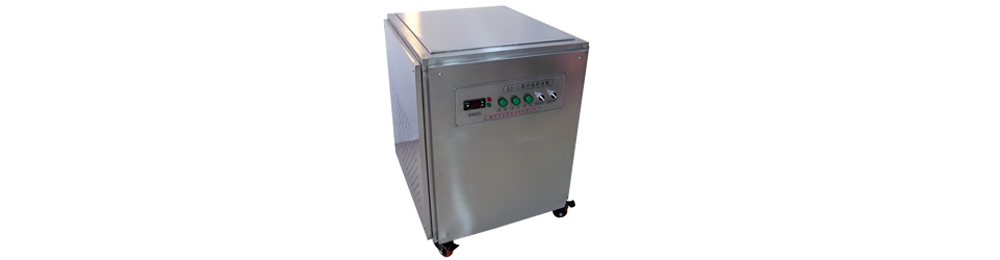

LS-2循环制冷机组(包装机专用)
LS-2 CIRCULATING REFRIGERATING MACHINE (SPECIAL FOR PACKING MACHINE)
特点
主机采用进口压缩机,内置安全保护,噪音低,省电耐用;
采用高品质工业纯钦制作热交换器,抗腐蚀能力强,淡海水及酸碱液体皆可适应;
水泵流量大,效率高,恒久耐用;
断电温度记忆系统,能够有效确定断电后重新来电自动按照原设定温度继续工作。
Features
The main engine adopts imported compressor, built-in safety protection, low noise, energy saving and durable.
The high-quality industrial pure-made heat exchanger is used to make the corrosion resistance strong, and the fresh sea water and acid-base liquid can be adapted.
The pump has large flow, high efficiency and long-lasting durability.
The power-off temperature memory system can effectively determine that the call is automatically resumed according to the original set temperature after the power is turned off.
 |
|
 |
热交换器
heat exchanger
|
|
断电温度记忆系统
power-off temperature memory system |
适用范围
LS-2制冷循环水机广泛用于塑料、电子制造、电镀、医药化工、超声波冷却、印刷等工业生产,它能精确控制现代工业机械化生产所要求的温度,从而大大提高了生产效率及产品质量。
Application
LS-2 refrigeration circulating water machine is widely used in plastic, electronics manufacturing, electroplating, pharmaceutical and chemical engineering, ultrasonic cooling, printing and other industrial production. It can precisely control the temperature required by modern industrial mechanized production, thus greatly improving production efficiency and product quality.
技术参数 Specifications
工作电压 Voltage |
220V/50Hz |
控温范围 Temperature control range |
3-80℃ |
冷却水量 Cooling water volume |
1.36m³/H |
水泵功率 Pump power |
0.37/0.35HP kW |
水泵扬程 Pump head |
14-22m |
水泵流量 Pump flow |
l00L/Min. |
压缩机输入功率 Compressor input power |
2.2kW |
外形尺寸(长×宽×高)Size (L×W×H) |
850×750×900mm |
重量 Weight |
80kg |
|
