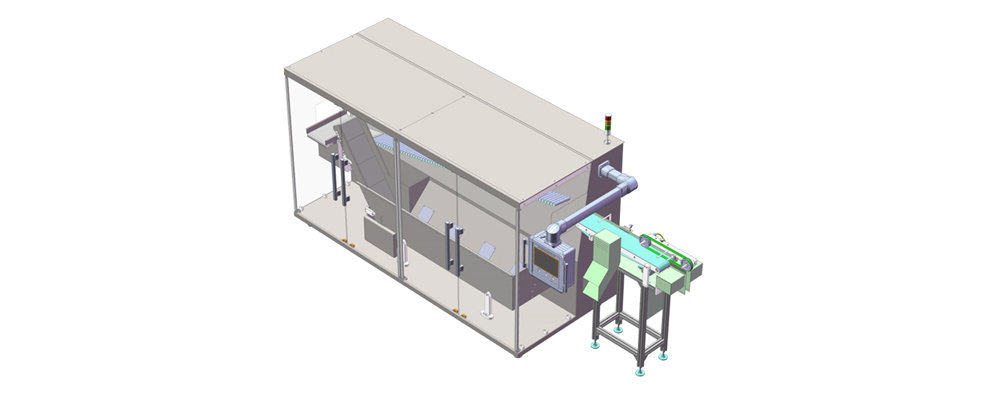

LD260高速理袋机
LD260 HIGH SPEED BAG SORTING MACHINE
特点
无规则物料整理,按需求排序输出;
全伺服智能控制低、中、高速辊,整理稳定;
废料剔除自动收集,连续整理;
整机全密封,符合GMP要求;
PLC配合人机界面,操作简单方便;
智能光电检测,保证稳定输出;
外罩材质为304不锈钢、有机玻璃,耐腐蚀,易清洁;
节省人力,自动输出至后序装盒机,可以与后序装盒机、枕包机等连接成自动生产线。
Features
Irregular material sorting, sorting output according to demand.
Full servo intelligent control of low, medium and high speed rollers, stable finishing.
Automatic collection of waste removal, continuous sorting.
The whole machine is fully sealed and meets GMP requirements.
PLC with man-machine interface, easy to operate.
Intelligent photoelectric detection to ensure stable output.
The outer cover is made of 304 stainless steel, plexiglass, corrosion-resistant and easy to clean.
Save manpower, automatically output to the subsequent cartoning machine, and can be connected with the subsequent cartoning machine, pillow wrapping machine, etc. to form an automatic production line
适用范围
适用于四边封,三边封,背封,连袋整理。
Application
It is suitable for four-side sealing, three-side sealing, back sealing, and even bag finishing.
技术参数 Specifications
包装物料packaging material |
四边封,三边封,背封小袋; |
理论输出速度Theoretical output speed |
260袋/分钟(取决于物料尺寸) |
允许包装范围allowable packaging |
最小20×50mm,最大130×200mm。 |
机器总功率Power |
9kW |
电压 Voltage |
380V/50Hz |
外形尺寸(长×宽×高)SDimensions ize (L×W×H) |
3590×1340×l755mm |
重量 Weight |
1500kg |
|
