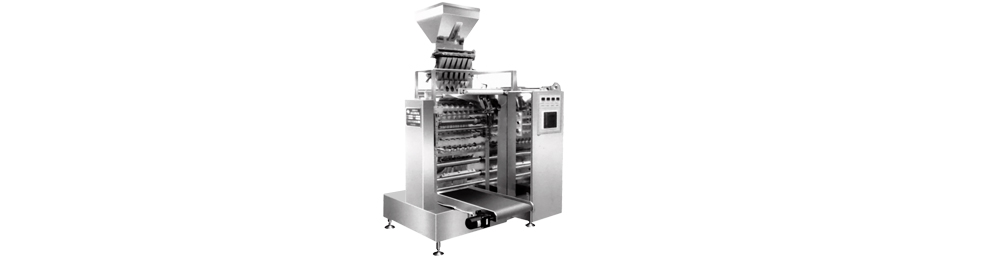

DXDK900四边封条袋包装机
DXDK900 FOUR EDGES SEALING AND LARGE NUMBER OFF BAG PACKING MACHINE
 特点
四边封口，同时进行多条袋包装，包装效率高。
PLC控制，自动化程度高。
无级变频调速，性能可靠，操作方便，可选配伺服控制。
光电踉踪、浮动对标，保证条袋包装双面图案完整，位置准确。
自动真空填充上料（适用千颗料物料）。
自动打批号、压纵横撕裂线。
可匹配自动装盒联线。- Features
Sealing four edges of bag simultaneously packing many bands of bags having high packing speed.
Controlled by PLC having high automatization.
The stepless frequency conversion variable speeds having reliable performances easy operati on.
It is equiped with photoelectric tracking device and floating alignment mark to ensure a complete pattern and precise position on both faces of the package of the band bags.
Automatically vacuum filling feeding(Applicable for pellets).
Automatically printing serial numbers and pressing longitudinal and transverse breaking lines.
- 适用范围
医药、食品、化妆品等行业对颗粒 片剂、粘稠半粘稠物料的包装。
- Application
Applicable for packing pellets tablets sticky and semi -sticky materials in pharmaceutical food process-ing and cosmetic industries.
- 技术参数 Specifications
| 冲裁次数Cutting frequency |
550次/分(times/Min.) |
| 包装效率Packing speed(bags/min) |
400袋/分(bags/ Min.) |
| 包装材料Packing material |
塑铝塑复合膜
Compound film made of plastic andaluminium and plastic
纸塑复合膜
Paper plastic composite film |
| 包装剂量 Packing dose |
颗粒2~20克/袋Cranulation 2~20g/bag.
液体5~50ml/袋Liquid 5~50ml/bag
片剂、胶囊：多片（粒）tablets capsules: many pieces(pills) |
| 制袋长度Bag sizes(L) |
80-120mm |
| 制袋宽度Bag sizes(W) |
40~150mm |
| 电源总功率 Installed power |
6kW |
| 电压 Voltage |
380V/50Hz |
| 外形尺寸（长×宽×高）S ize (L×W×H) |
1500×1540×2200 mm |
| 重量 Weight |
1200kg |
|
