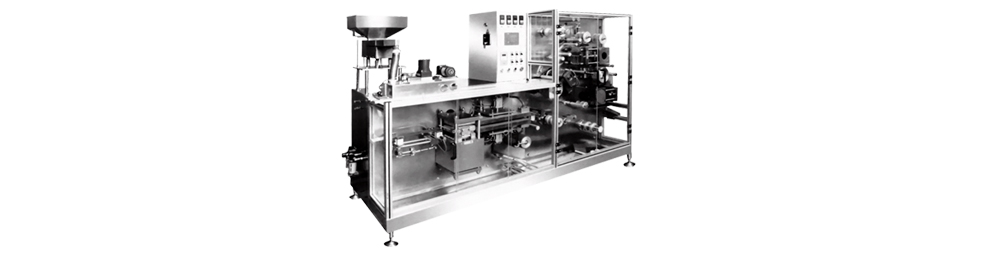

DPH130辊板式泡罩包装机
DPH130 ROLLER AND PLATE COMBINING TYPE BLISTER PACKING MACHINE
 特点
人机界面、PLC程序控制、变频调速；
板式正压吹塑成型，棍式封合，泡罩挺实，封合质量好。
无横边冲裁，节省包装材料；
更换模具快捷，调整方法简单；
工作效率高，故障率低；
工作条件符合GMP标准。
Features
The computer human interface PLC programe control frequency conversion variable speeds.
The plate forming by positive pressurethe roller type sealing the blister is straightthe sealing quality is good.
There is no horizontal side cutting it can save packing materials.
Quickly change the sharpener the adjusting way is simple.
The work efficiency is high and the breakdown rate is low.
The working conditions conform to GMP Standard.
- 适用范围
素片、糖衣片、异型 片、胶蛋、丸粒等药品包装及小型糖果的包装。
Application
Applicable for the package of tabletssugar - coated tabletsgrotesque tabletscapsulespills etc. medicines and miniature candies
- 技术参数 Specifications
| 成型最大面积Max forming area |
210×145mm
(即板块最大长度105mm，PVC最大宽度145mm) 。
( i.e.Max length of the plate 105mm，PVC max width 145mm)
|
| 成型最大深度 Max forming depth |
10mm |
| 夹持步进最大距离Max inching while clipping |
210mm |
| 冲裁次数可达Cutti ng frequency |
≤240板/分(plates/ min)（每次冲二板。根据板块大小、有无断裂线及所包装药品，冲切次数可进行适当调整）。
(Each time cuts two plates.The cutting times is adjustable according lo thesizes of the plateswhether there is break line and the medicine to be packed.)
|
| 机器总功率Power |
9.22kW |
| 电压Voltage |
380V/50Hz |
| 耗气量Air consumption |
300L/Min. |
| 耗水量Water consumption |
300L/H. |
| 电压 Voltage |
380V/50Hz |
| 外形尺寸（长×宽×高）S ize (L×W×H) |
3000×880×l730mm |
| 重量 Weight |
1600kg |
|
